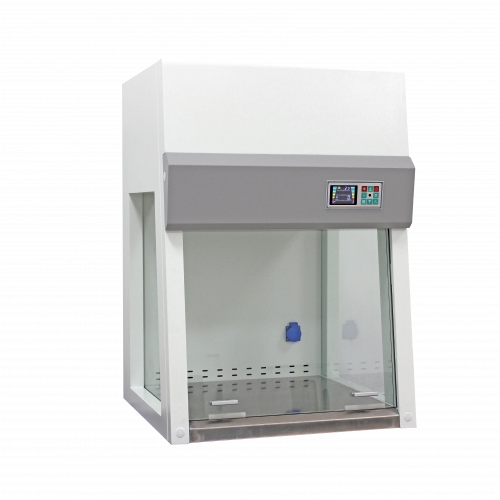

Benchtop Vertical Laminar Flow Hood (610 x 590 x 625mm)
The vertical laminar flow hood provides sample protection by directing purified air in a vertical, unidirectional stream across the working zone and out of the open front. This creates a sterile work area suitable for aseptic processing. The versatile flow hood is suitable for a wide range of laboratories and industries, ensuring superior cleanliness in life sciences, medical, electronics manufacturing, and other fields. Its benchtop design allows for placement on laboratory workbenches, making it ideal for compact work areas.
Features
Includes HEPA Filter with efficiency: 99.995% at 0.3um
LCD display, microprocessor control system.
Air speed adjustable, HEPA filter and sterilization lamp replacement reminder function.
Pre-filter is polyester fiber, washable and anti-oxidation.
UV sterilization system.
With memory function in case of power-failure.
Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
UV timer: When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
Download Manual
Technical Specifications
Model | BT2501 |
|---|---|
Applicable Station | One person one side |
Airflow Direction | Vertical |
Cleanliness | Class 100 (ISO Class 5) |
Collection Efficiency | 0.3um particle ≥ 99.995% |
Pre-Filter | Polyester fiber, Washable |
HEPA Filter | ≥99.995% efficiency at 0.3μm |
Windows | Front and Side windows, 5mm toughened glass, anti-UV |
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating Worktable: 304 stainless steel |
Caster | Universal caster with leveling feet |
Colony Count | ≤0.5/vessel (Petri dish is φ90mm) |
Wind Speed | Initial: 0.5 |
Airflow Velocity | 0.2-0.5 (m/s), speed adjustable |
Noise | ≤62db |
Vibration Semi-peak Value | ≤3um |
Illumination | ≥500 lux |
Work Surface | 50kg |
Inner Chamber | SUS 304 stainless steel plate |
Outer Shell | Cold rolling steel electrostatic spraying exterior |
Operation Door | Tempered glass |
HEPA Filter (mm) | 780 x 533 x 50 (1 piece) |
Pre- Filter (mm) | 532 x 446 x 5 (1 piece) |
LED Lamp | 8W (1 piece) |
UV Lamp | 8W (1 piece) |
Top Fan | 160W (1 piece) |
Rated Power | 180W |
Display | Microprocessor controlled with LCD display, graphical and digital display of the operating status of each function |
Wind Speed Control | Intelligent multi-level adjustable |
Standard Accessory | UV lamp LED lamp Waterproof socket x 1 |
Internal Size (WxDxH) (mm) | 610 x 590 x 625 |
External Size (WxLxH) (mm) | 710x 680 x 1050 (Without base stand) 710 x 680 x 1670 (With base stand) |
Packing Size (WxLxH) (mm) | 850 x 936 x 1218 |
Max. Consumption | 800W |
Waterproof Socket | 1pcs |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Net Weight (kg) | 80kg (Without base stand) 130kg (With base stand) |
Gross Weight (kg) | 115kg (Without base stand) 165kg (With base stand) |
Shipping Size (WxDxH) (mm) | 850 x 936 x 1218 |
Optional | Base stand (BT2501-A) Pre-Filter (BT2501-B) HEPA Filter (BT2501-C) |
Optional Base Stand for BT2501 Benchtop Vertical Laminar Flow Hood
Optional Base Stand for BT2501 Benchtop Vertical Laminar Flow Hood ..
$250.00 $212.50
Pre-Filter for BT2501
Replacement Pre-Filter for BT2501, Benchtop Vertical Laminar Flow HoodSize: 532 x 446 x 5mm ..
$35.00 $29.75
HEPA Filter for BT2501
Replacement HEPA filter for BT2501, Benchtop Vertical Laminar Flow HoodSize: 780 x 533 x 50mm ..
$170.00 $144.50
